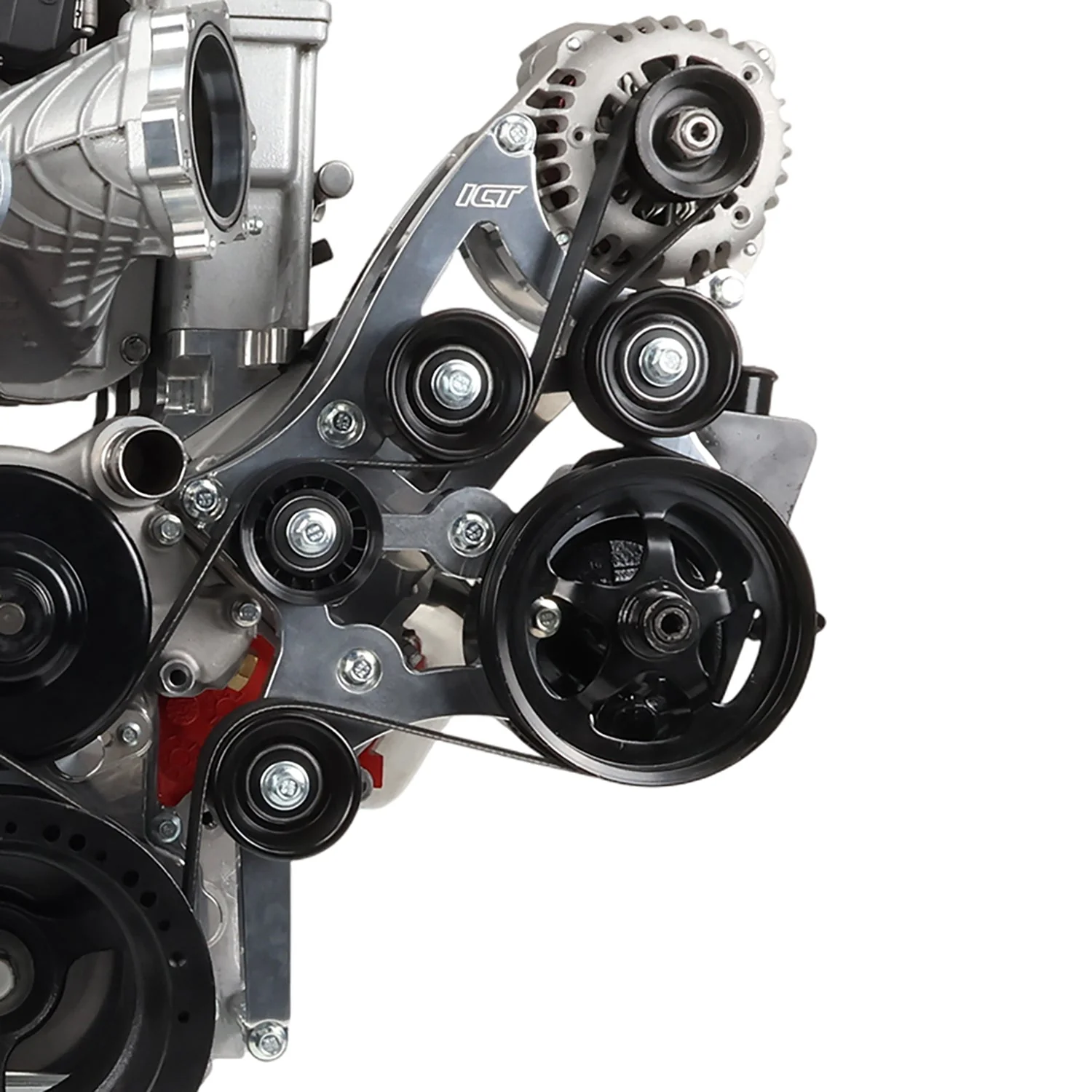

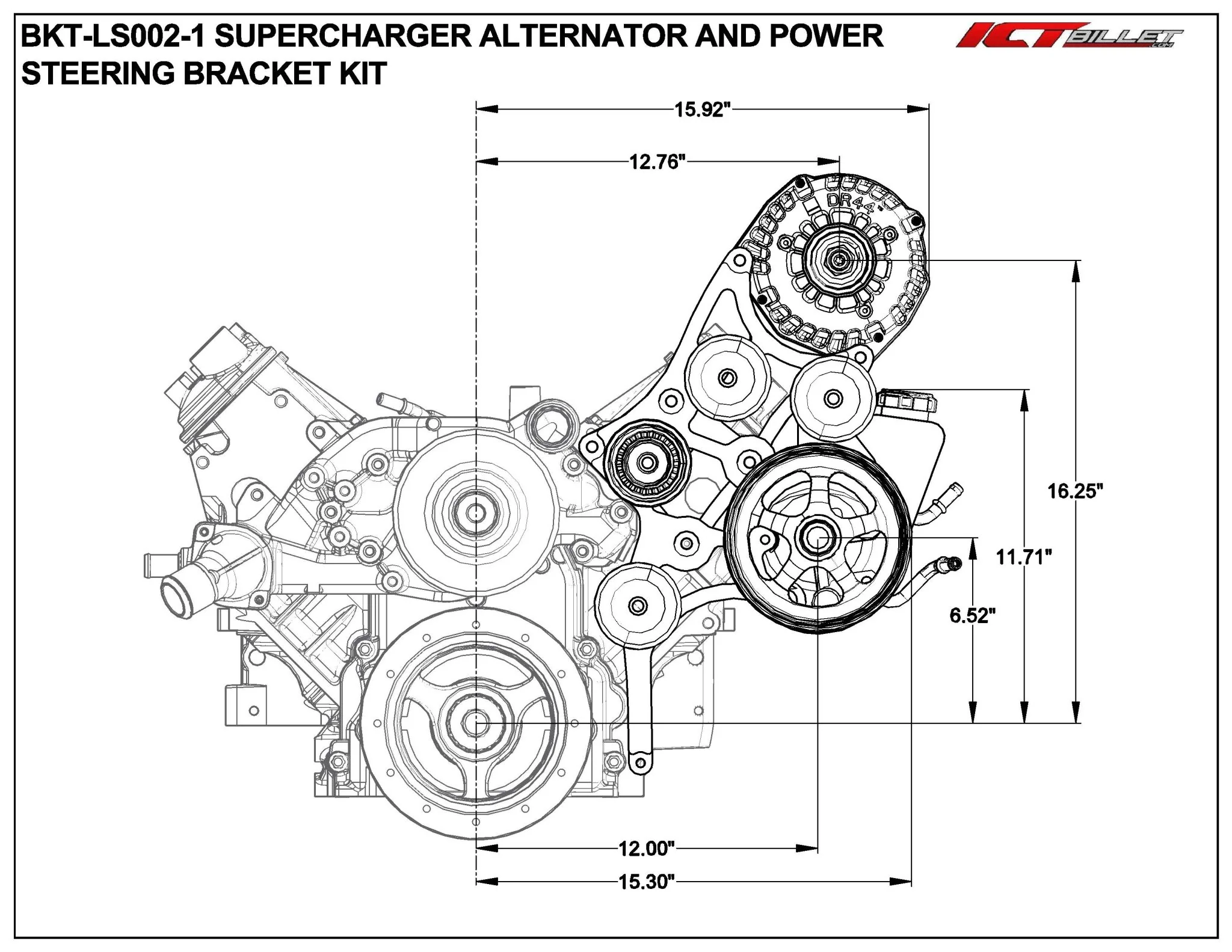

LS Truck Alternator and Power Steering Bracket For Drivers Side

Keep your trucks' factory Saginaw power steering pump, to retain the factory steering feel in your Chevy truck.

• Allows the use of LSA supercharger accessories, since this bracket moves the power steering and alternator to Corvette belt spacing
• 6 rib belt drive
• Compatible with Chevy C1500 truck frames from 1960-2013 (1960-66 have to slightly bend the power steering return line 1" toward pump) while running LS engine

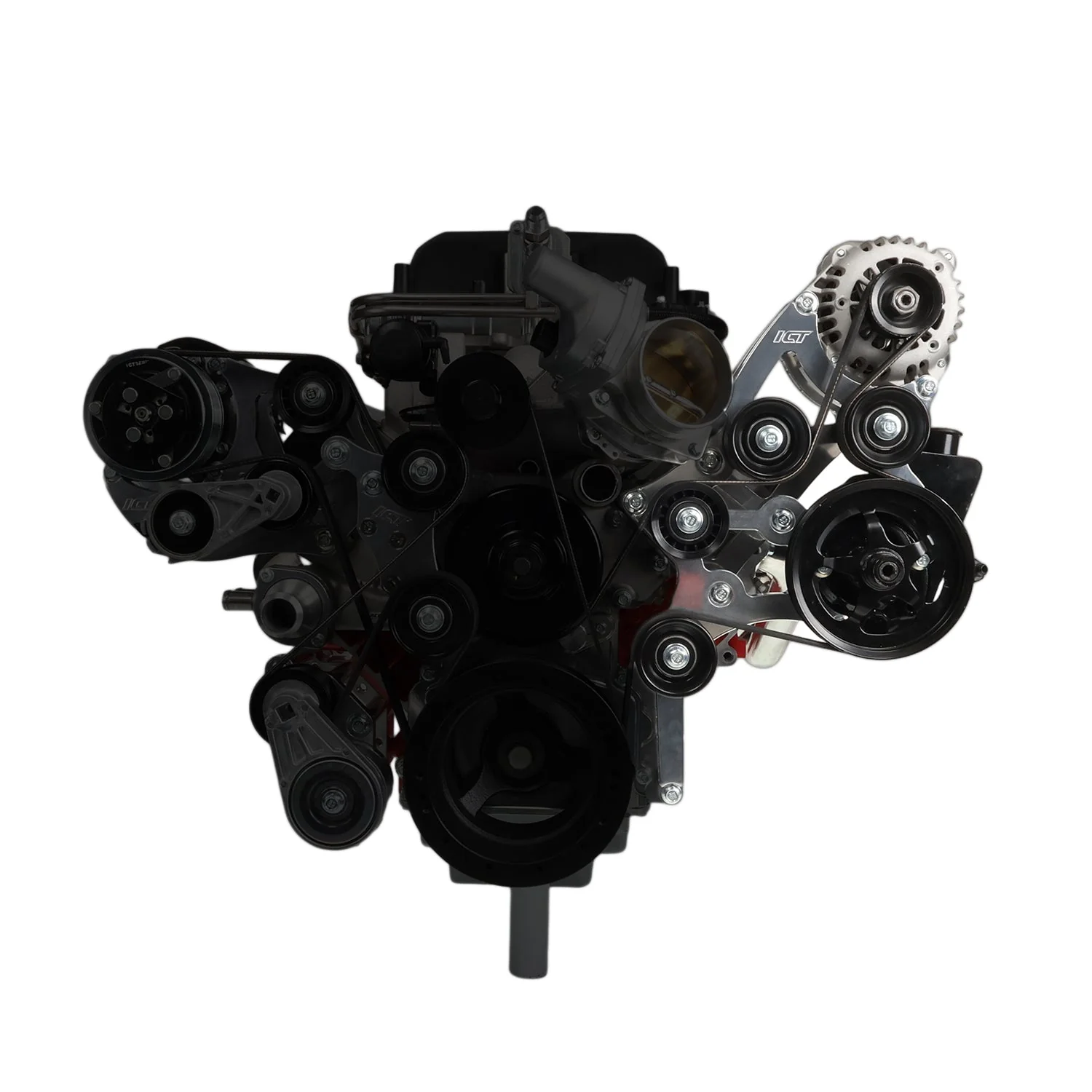

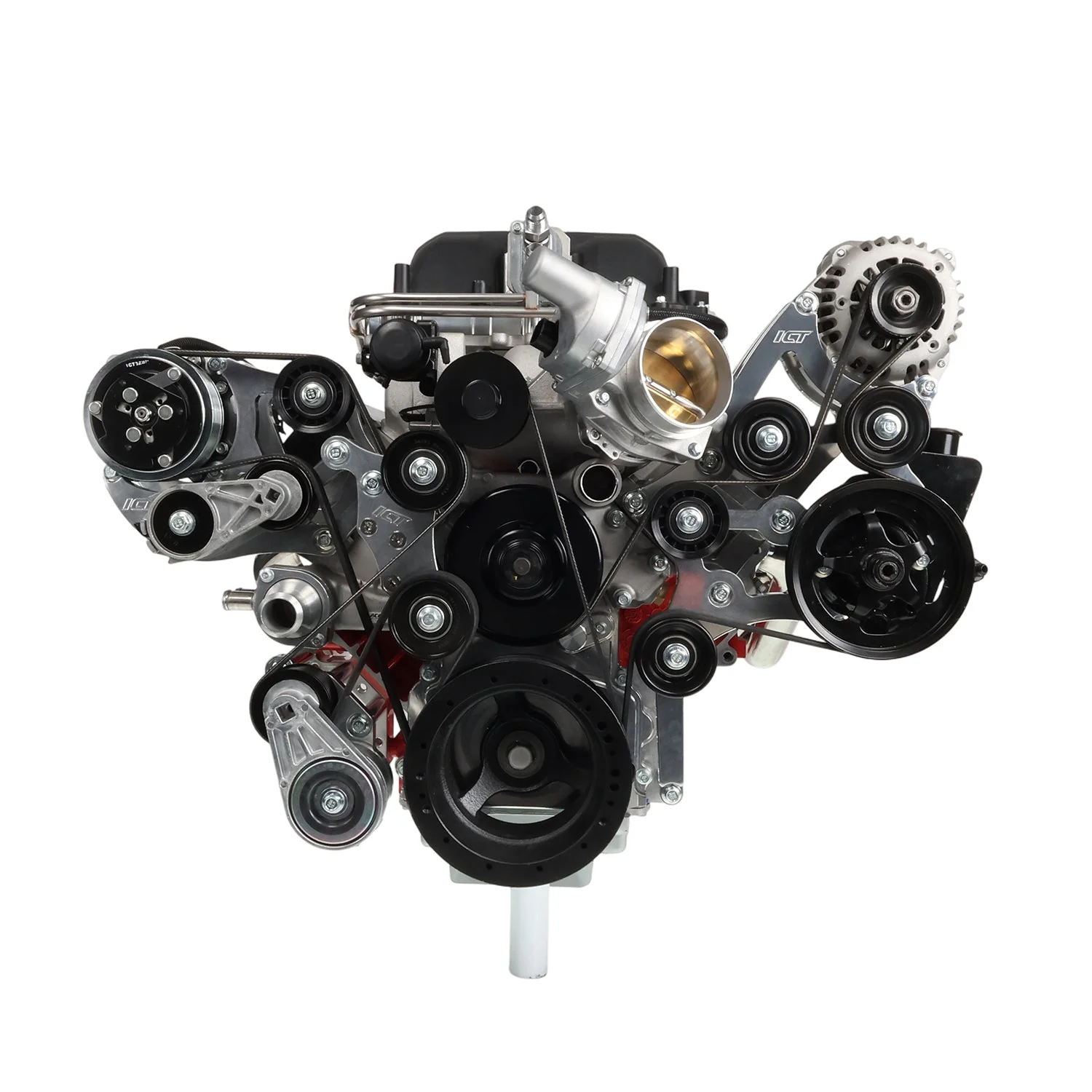

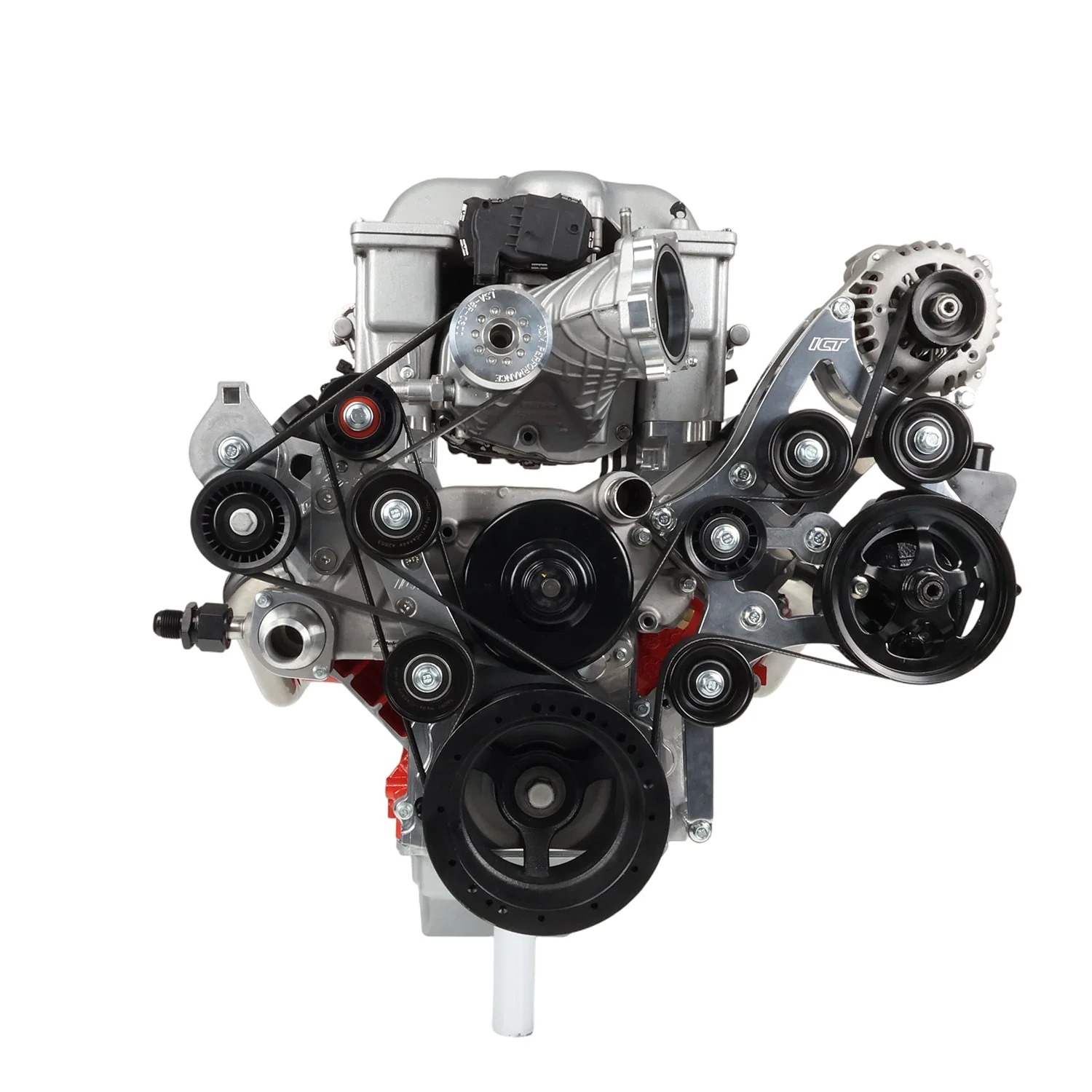

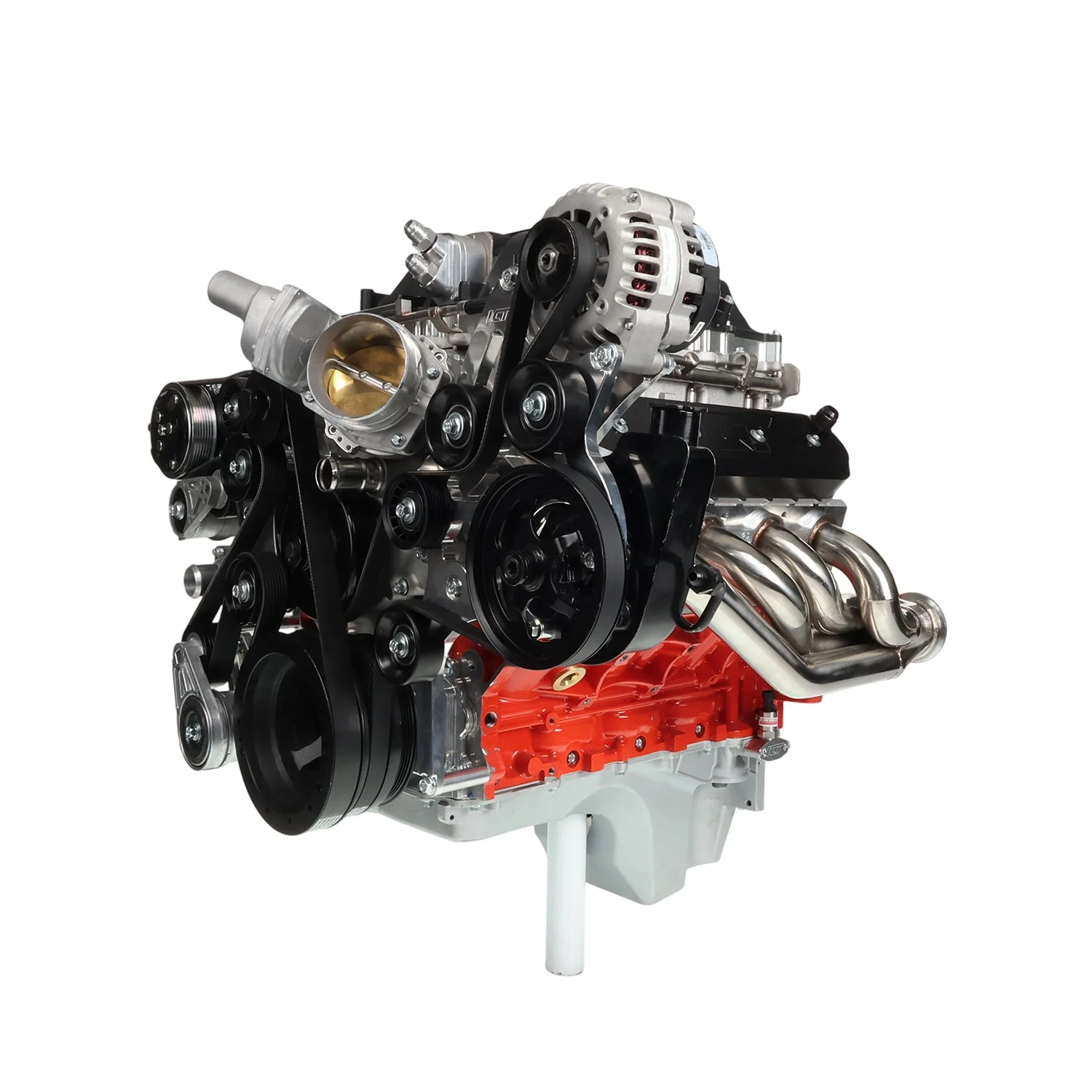

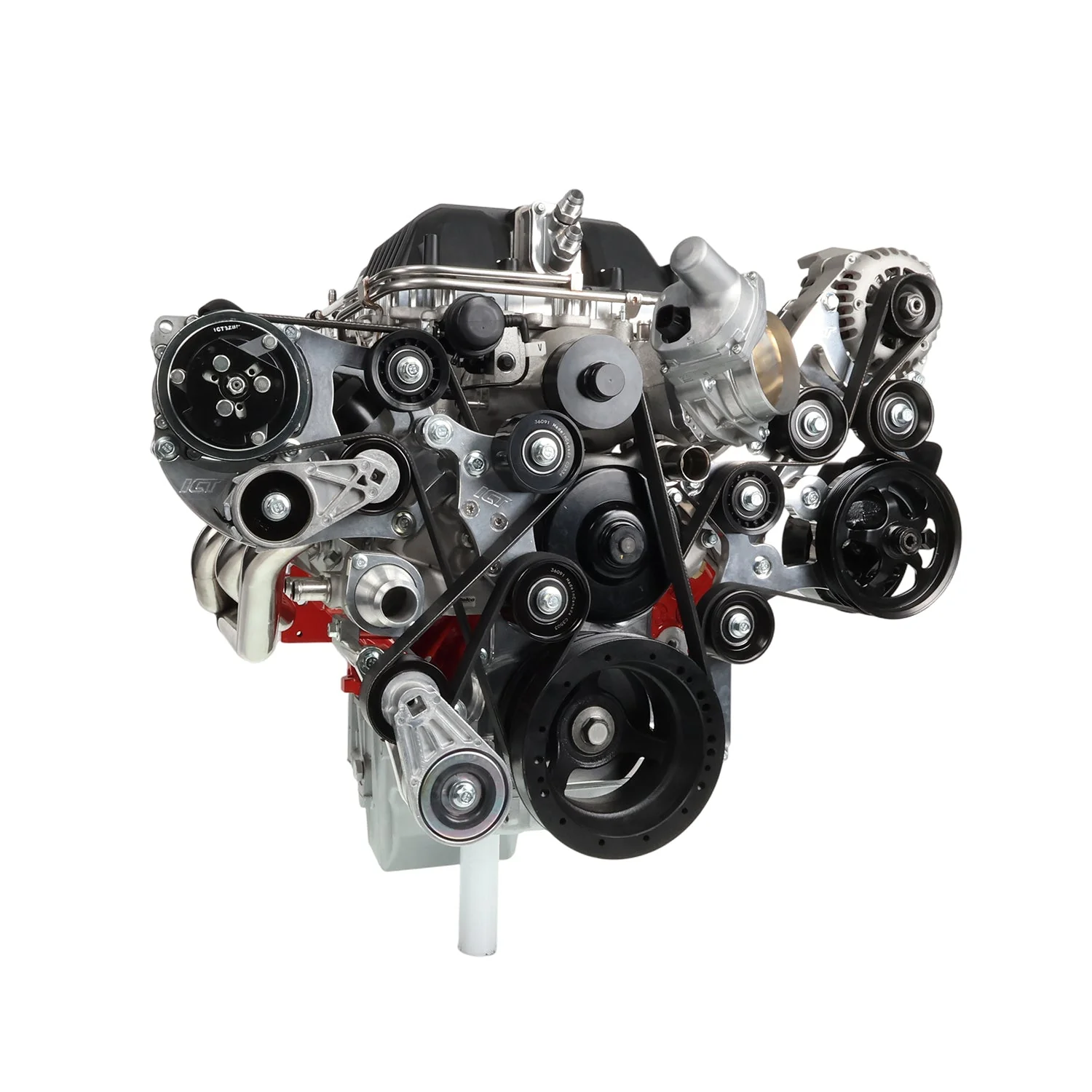

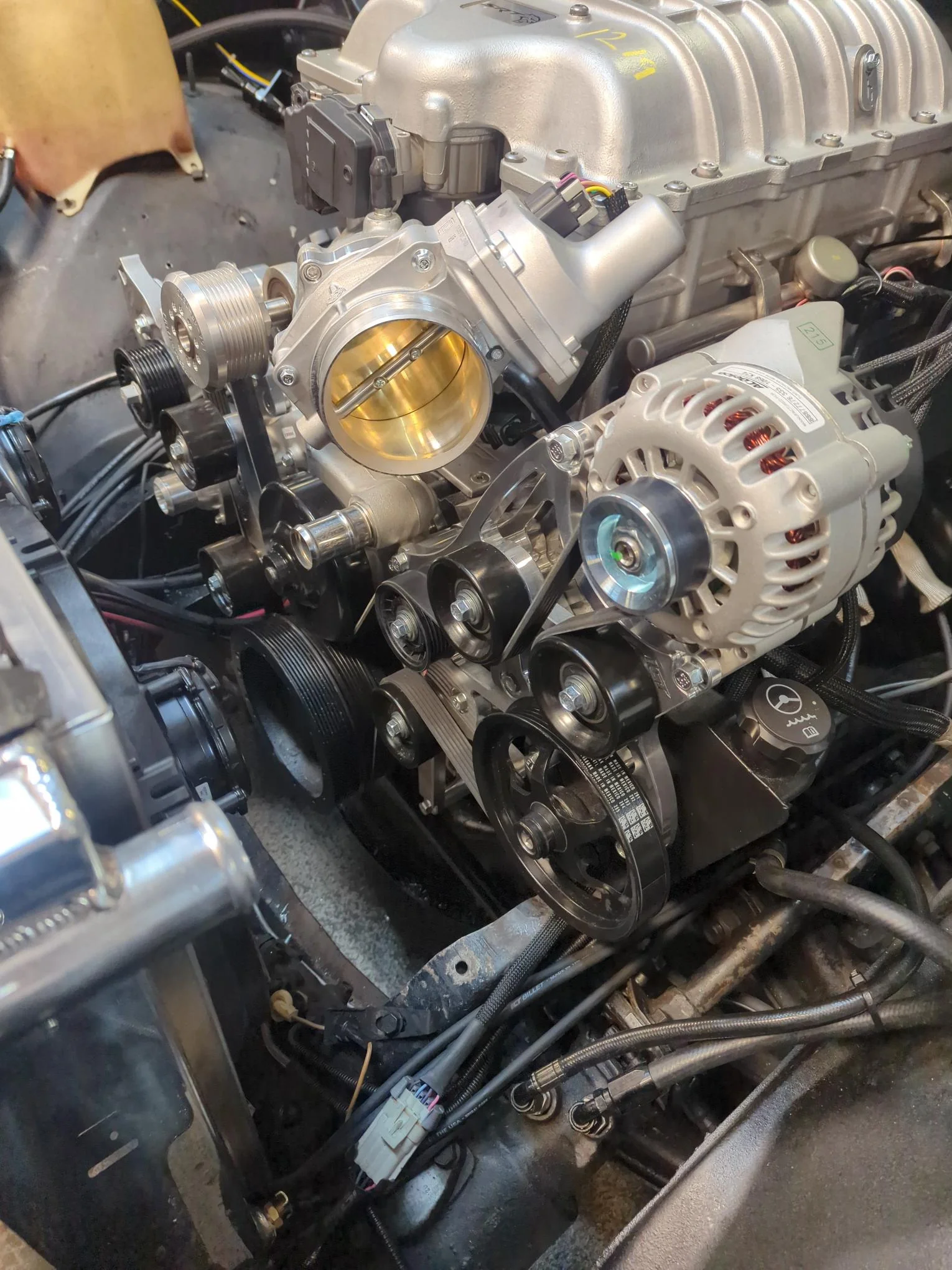

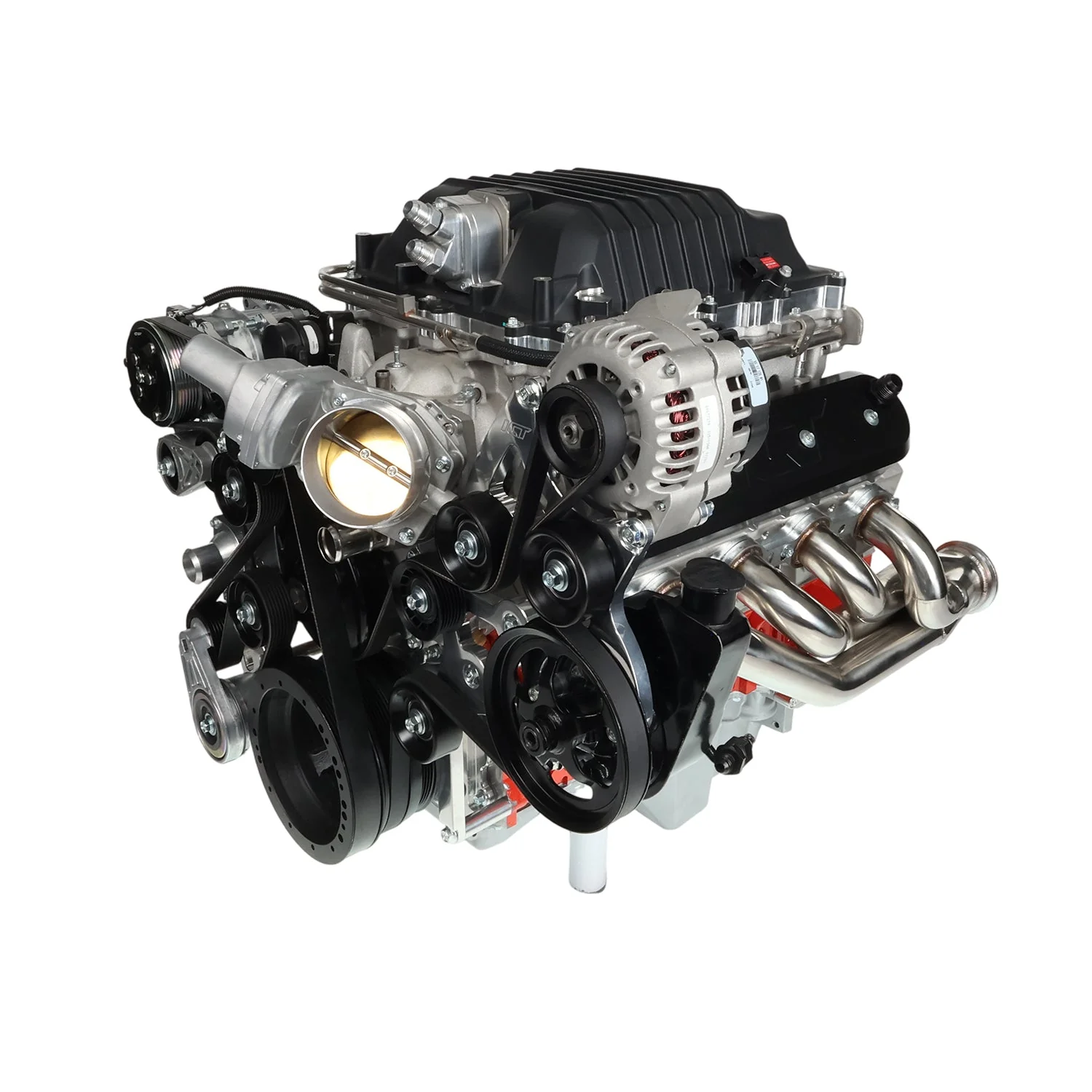

• Shown with separate LSA 8 rib belt drive, using an LSA water pump

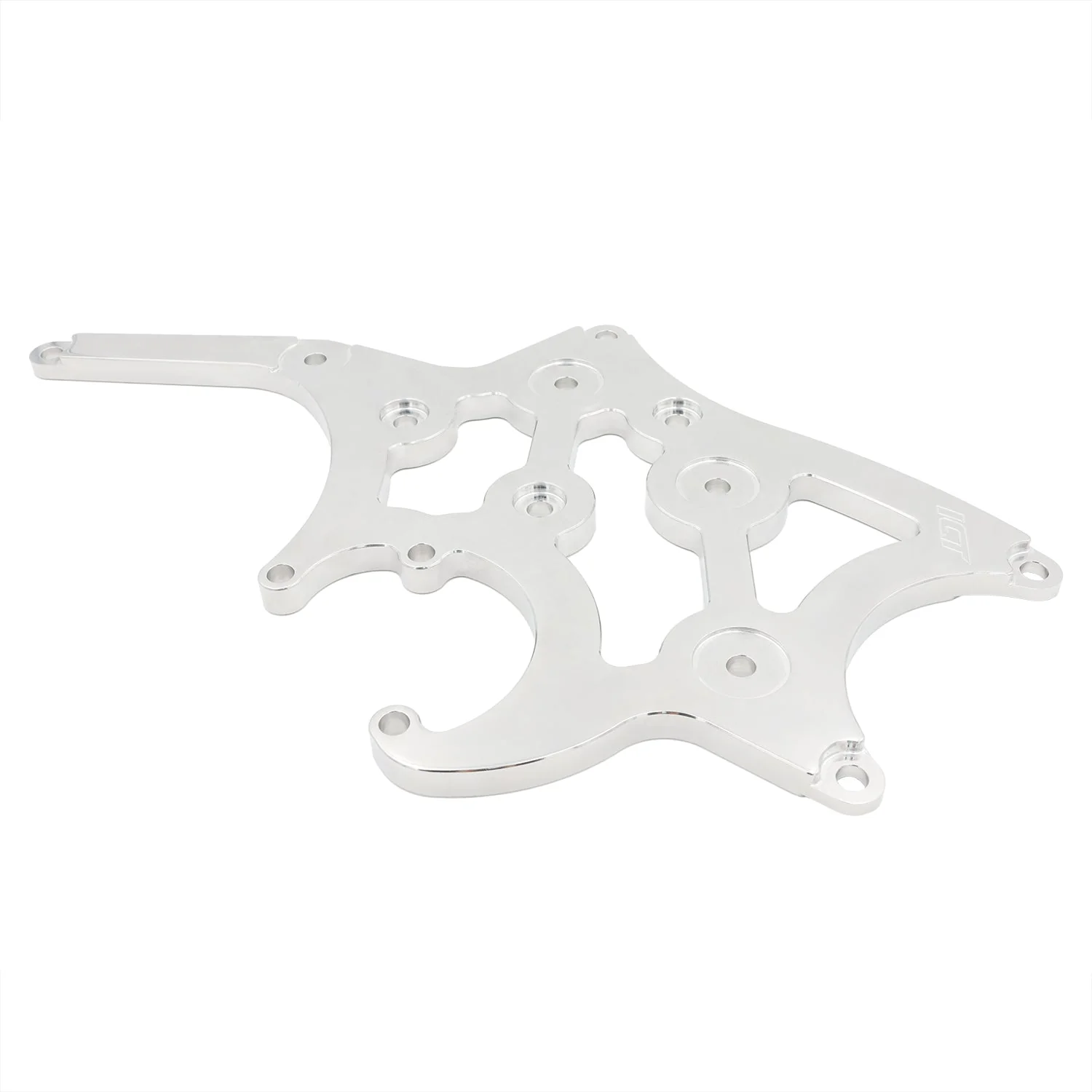

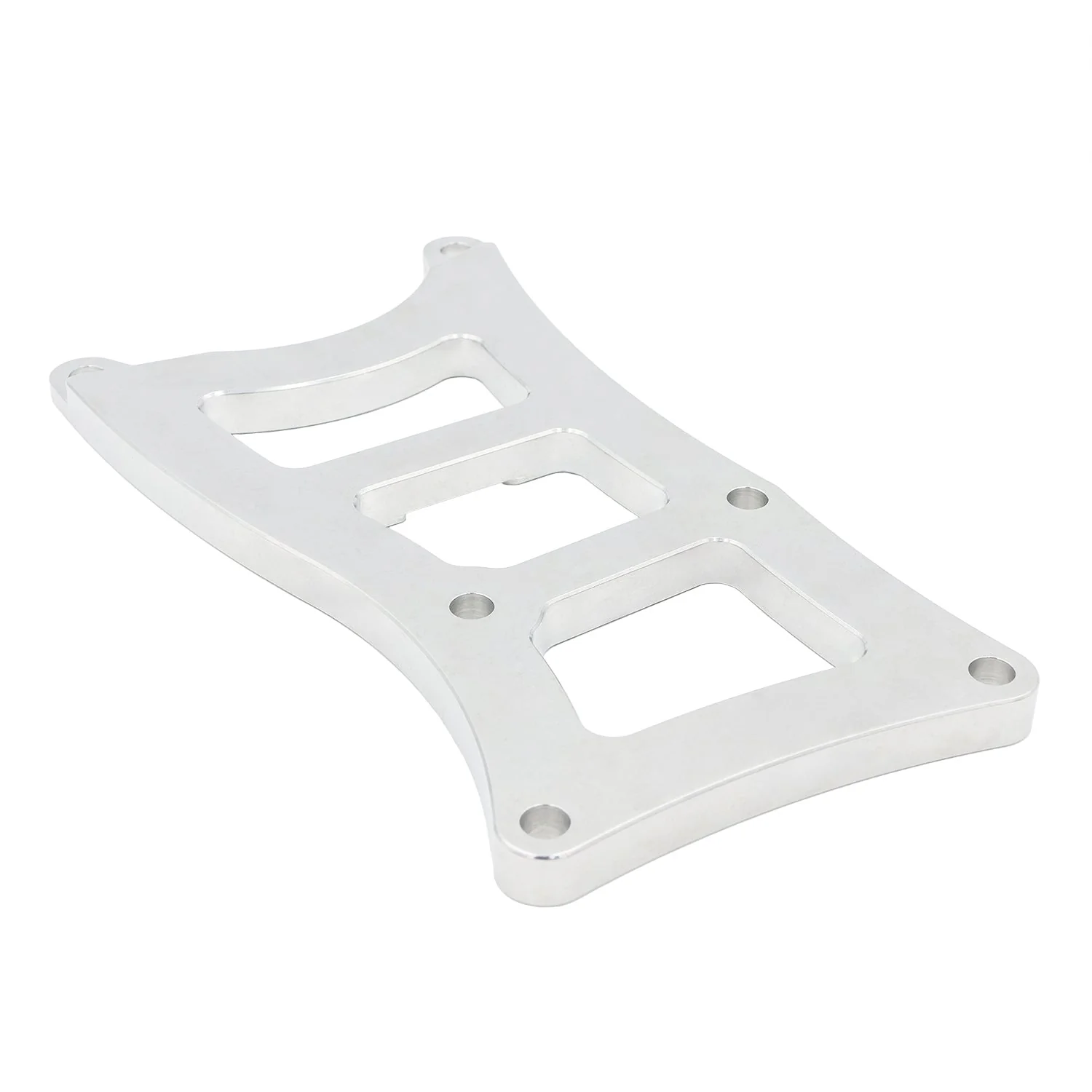

• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

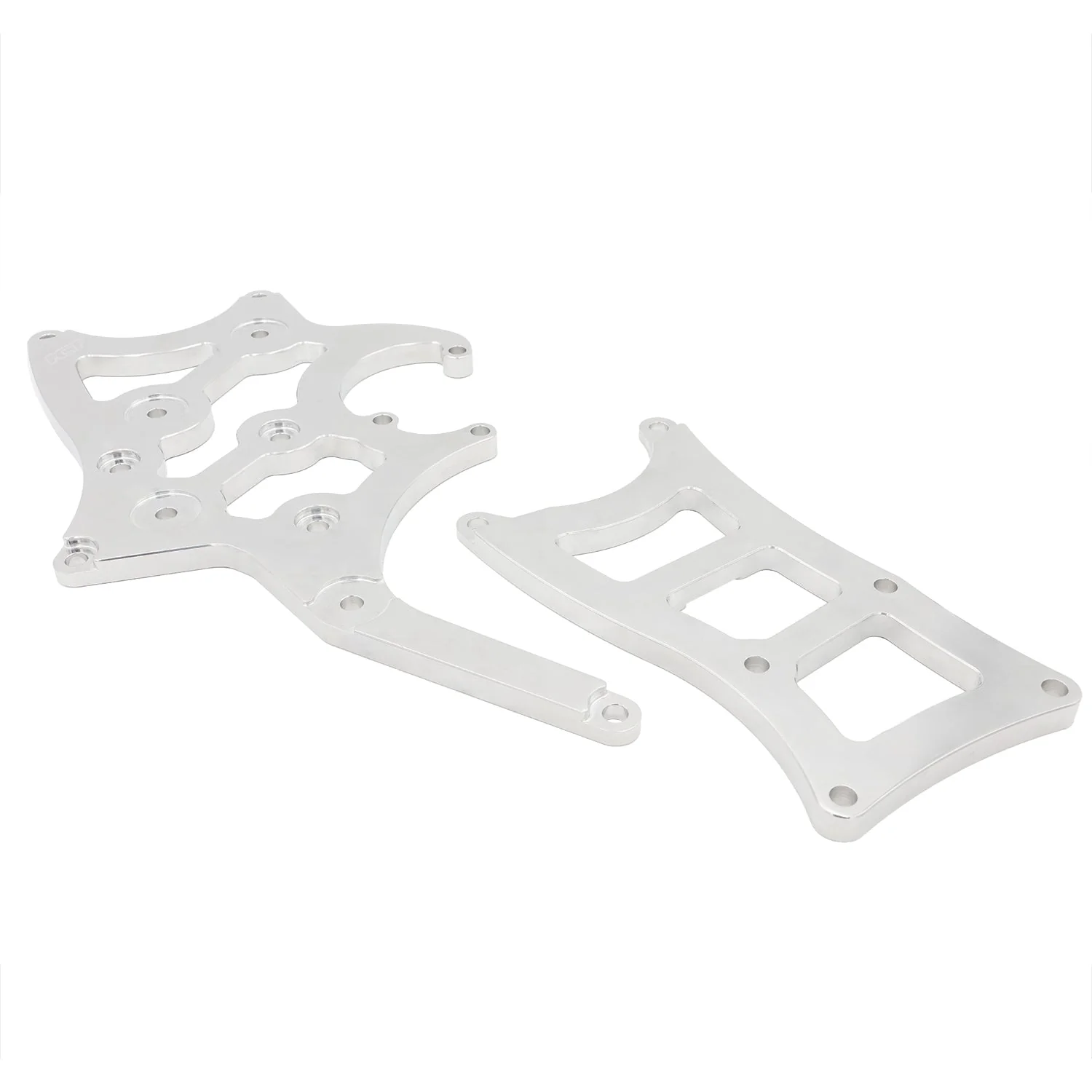

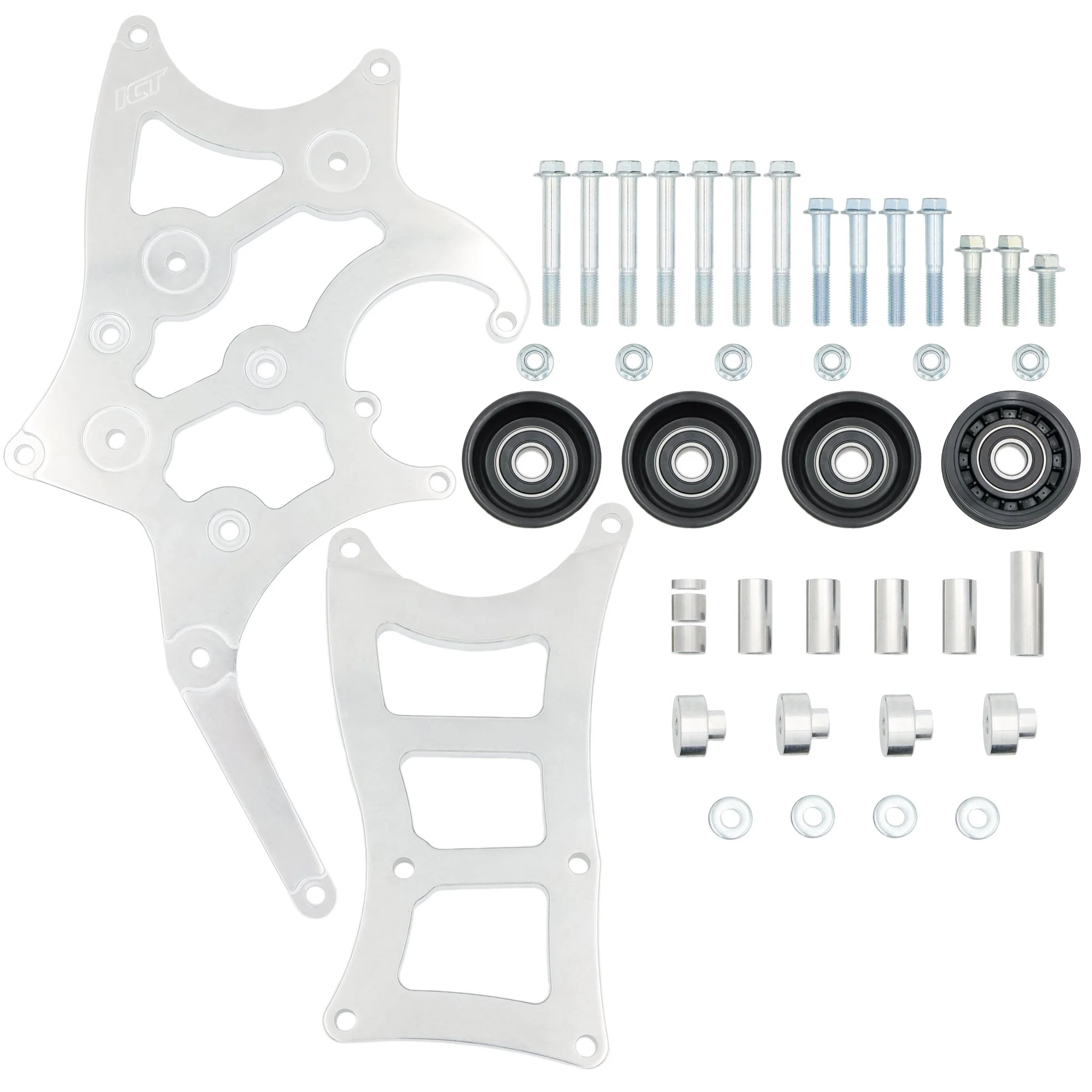

• Includes: bracket, idler pulleys, and mounting hardware

Parts Compatibility

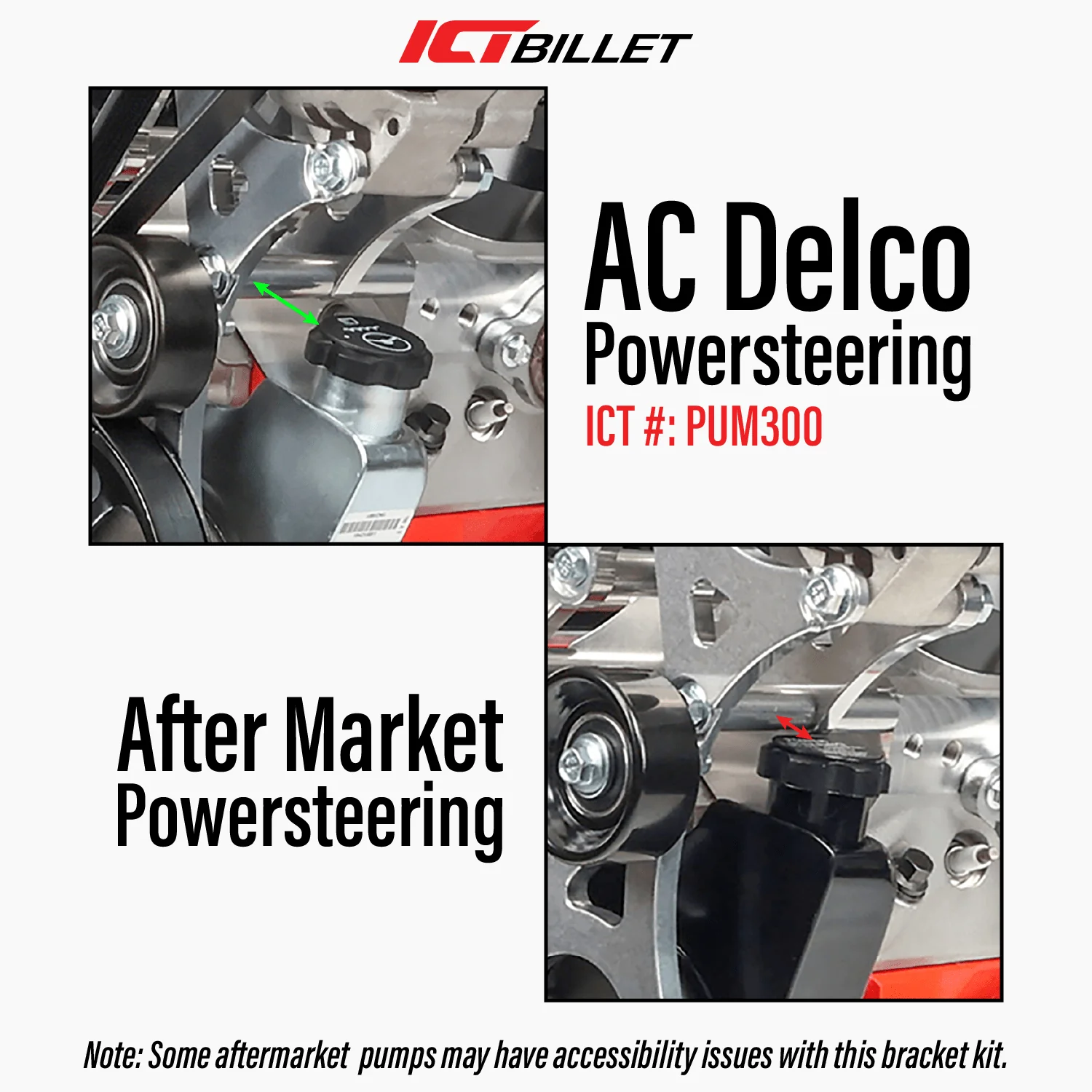

• Truck/SUV (any year) power steering pump and pulley (ICT# PUM300 and PUL300)
• LSA harmonic balancer (ICT# BAL301)
• LSA water pump (ICT# WAT101)
• Truck/SUV (any year, any amperage) alternator (ICT# ALT300)
• NOT compatible with Corvette, CTS-V, or 2010-2015 Camaro bolt pattern alternators

Belt

95.5in - K060955

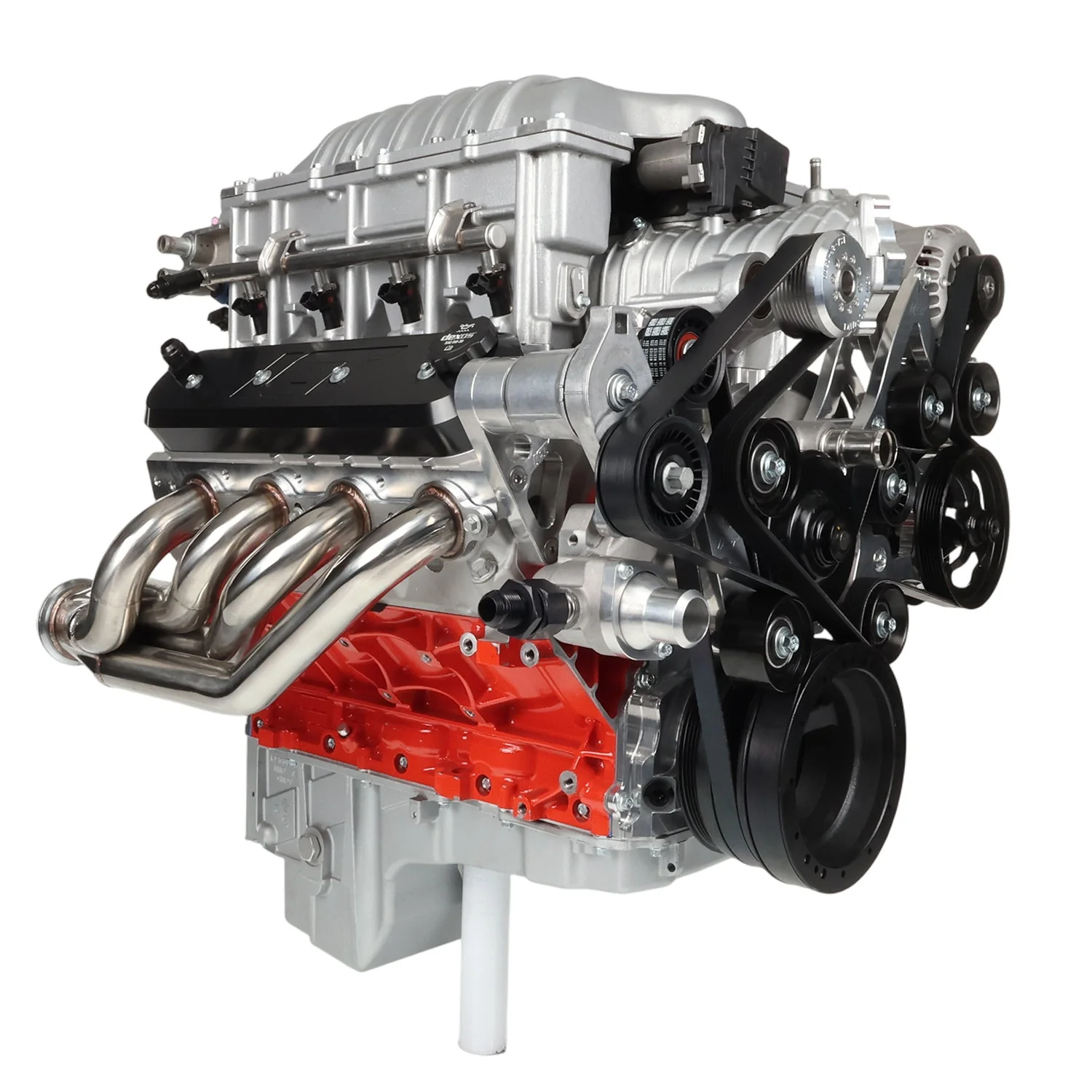

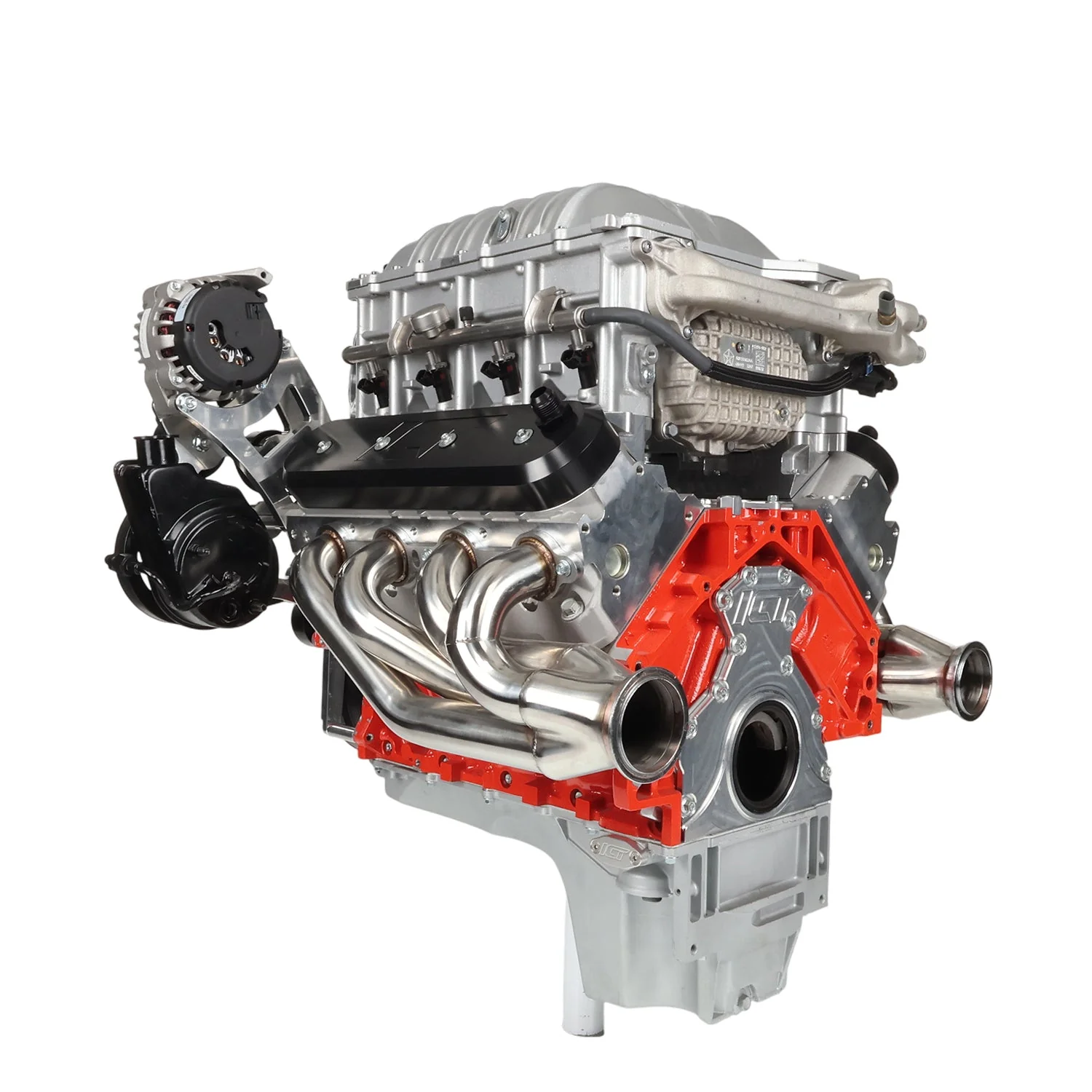

*note if using LT4 supercharger with this bracket then we recommend using the DSX Tuning, LT4 coolant manifolds
