Compact, Clean, and Built for Performance – G8-Inspired Low-Mount Bracket with LS1 Belt Spacing

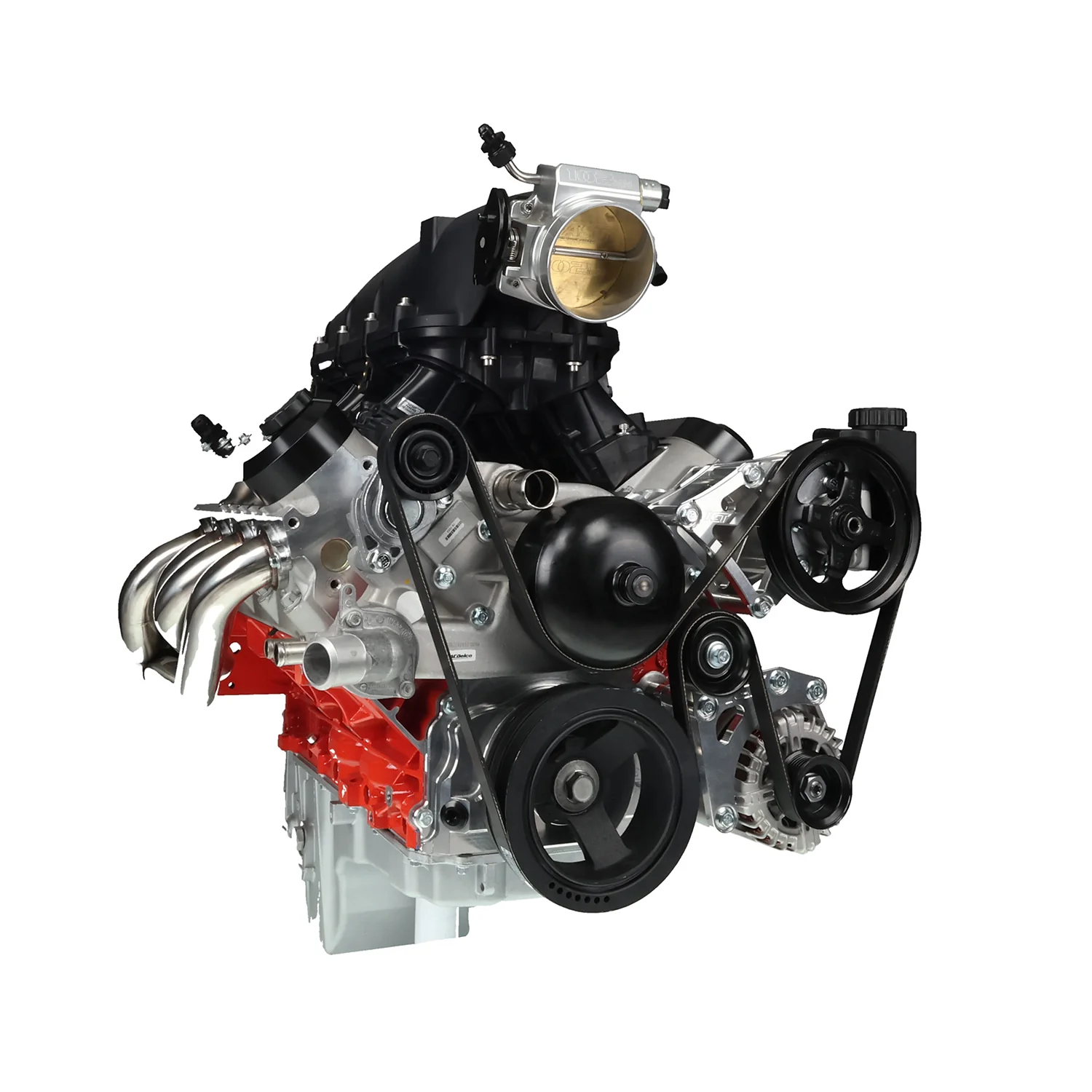

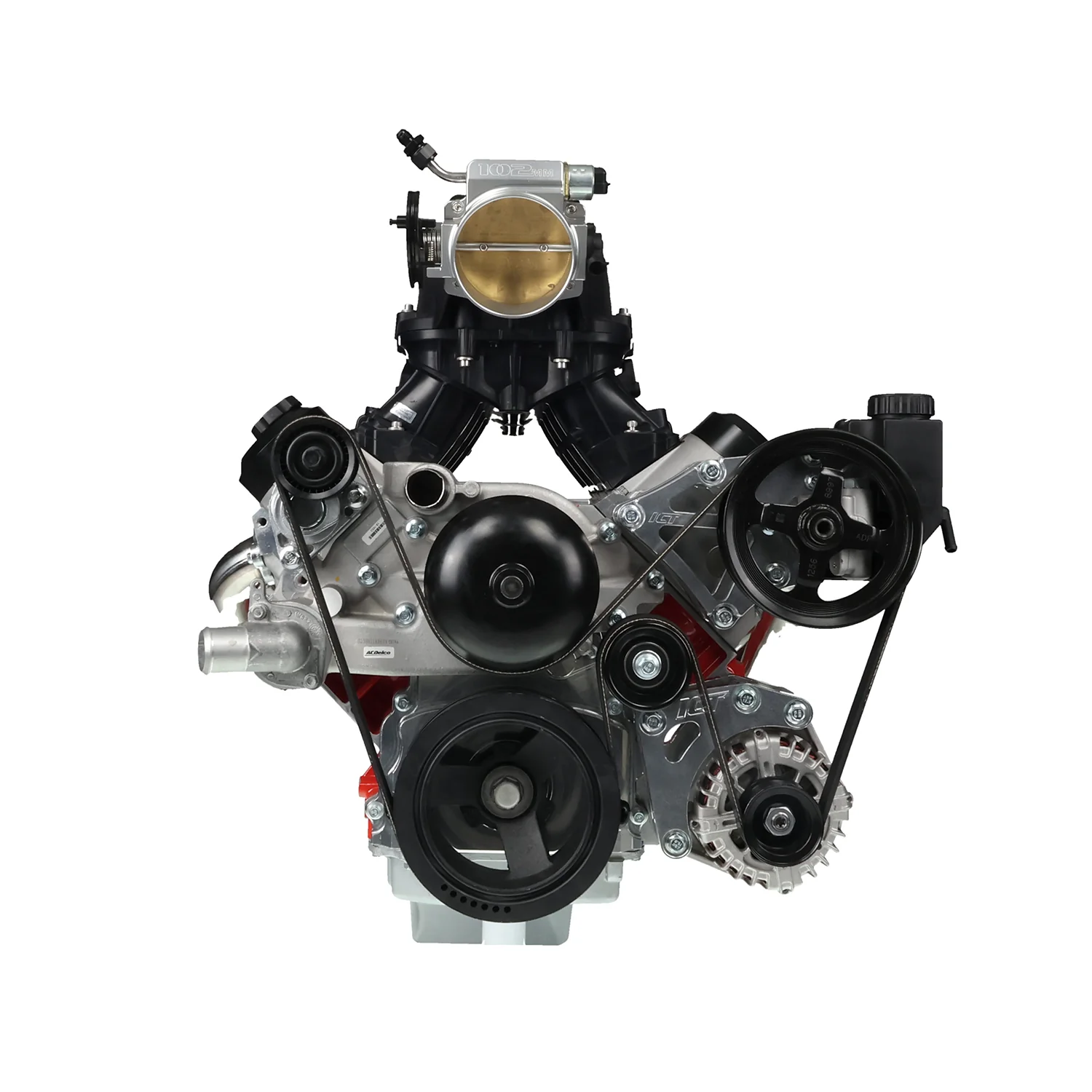

This LS3-style low-mount alternator bracket kit allows you to mount a truck or LS1-style alternator low on the driver’s side of your LS engine while maintaining LS1 Camaro/GTO belt spacing. Based on the G8 layout, this bracket features a refined, compact idler location for better clearance and a clean look. Ideal for swaps and builds with tight engine bays, this bracket is CNC-machined in Wichita, Kansas, from aerospace-grade, USA-sourced billet aluminum.

• Compatible with "6.06 wide bolt" pattern alternators: Corvette/CTSV or 2010-15 LS3 Camaro

• Works with LS1 Camaro/GTO crank pulley (ICT #BAL200)

• Mounts alternator in a low driver-side position using LS1 Camaro/GTO belt spacing

• G8-style design with more compact idler location for tighter clearances

• Made in Wichita, Kansas from aerospace-grade, USA-produced billet aluminum

• Includes billet bracket, idler pulley, and all necessary mounting hardware

Need to Extend Your Alternator Harness?

If your build requires a longer alternator harness connection, we offer plug-and-play solutions:

• Use ICT #WEALT30-36 for 4-pin alternators

• Use ICT #WEALT40-36 for 2-pin alternators
