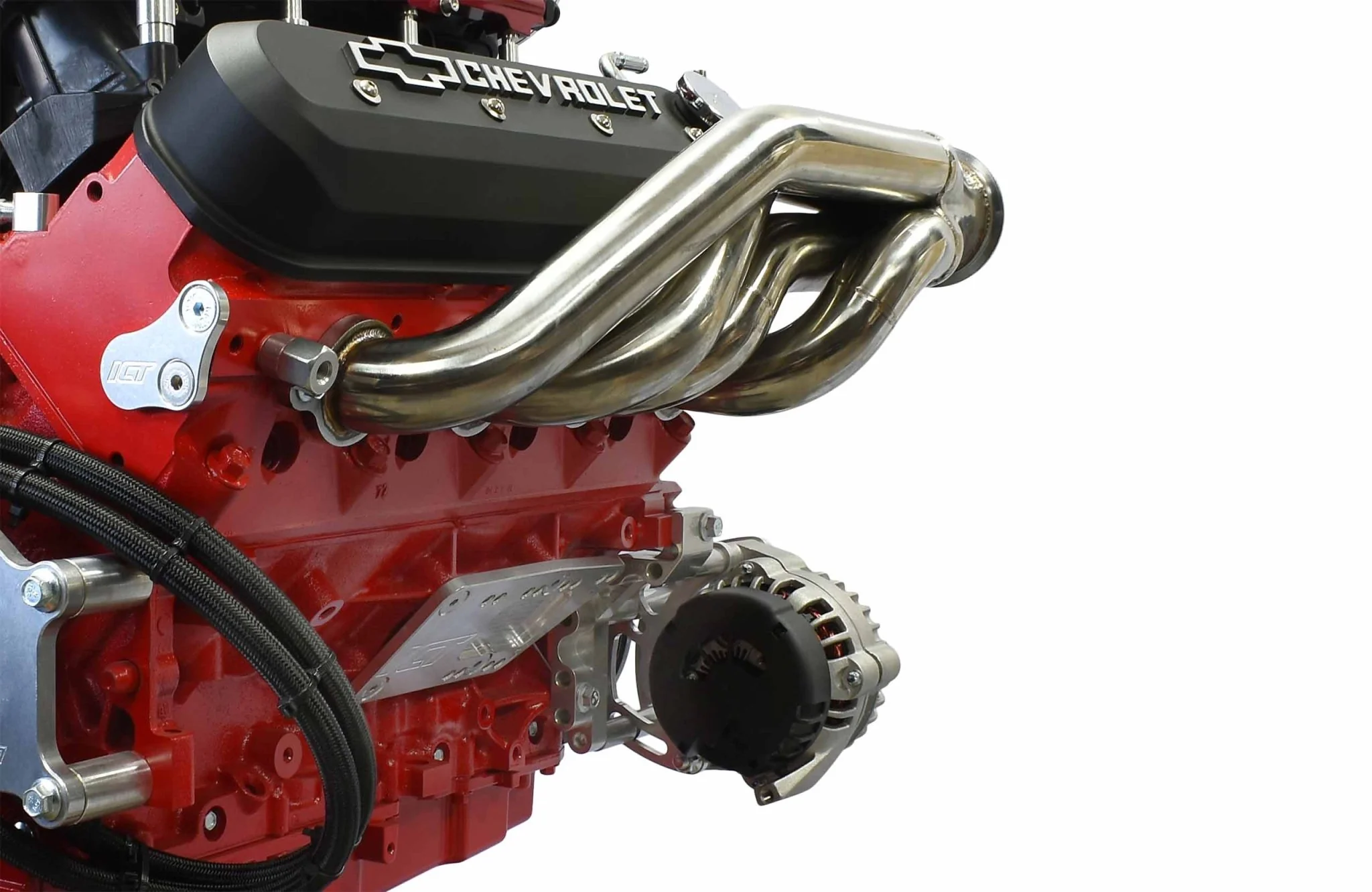

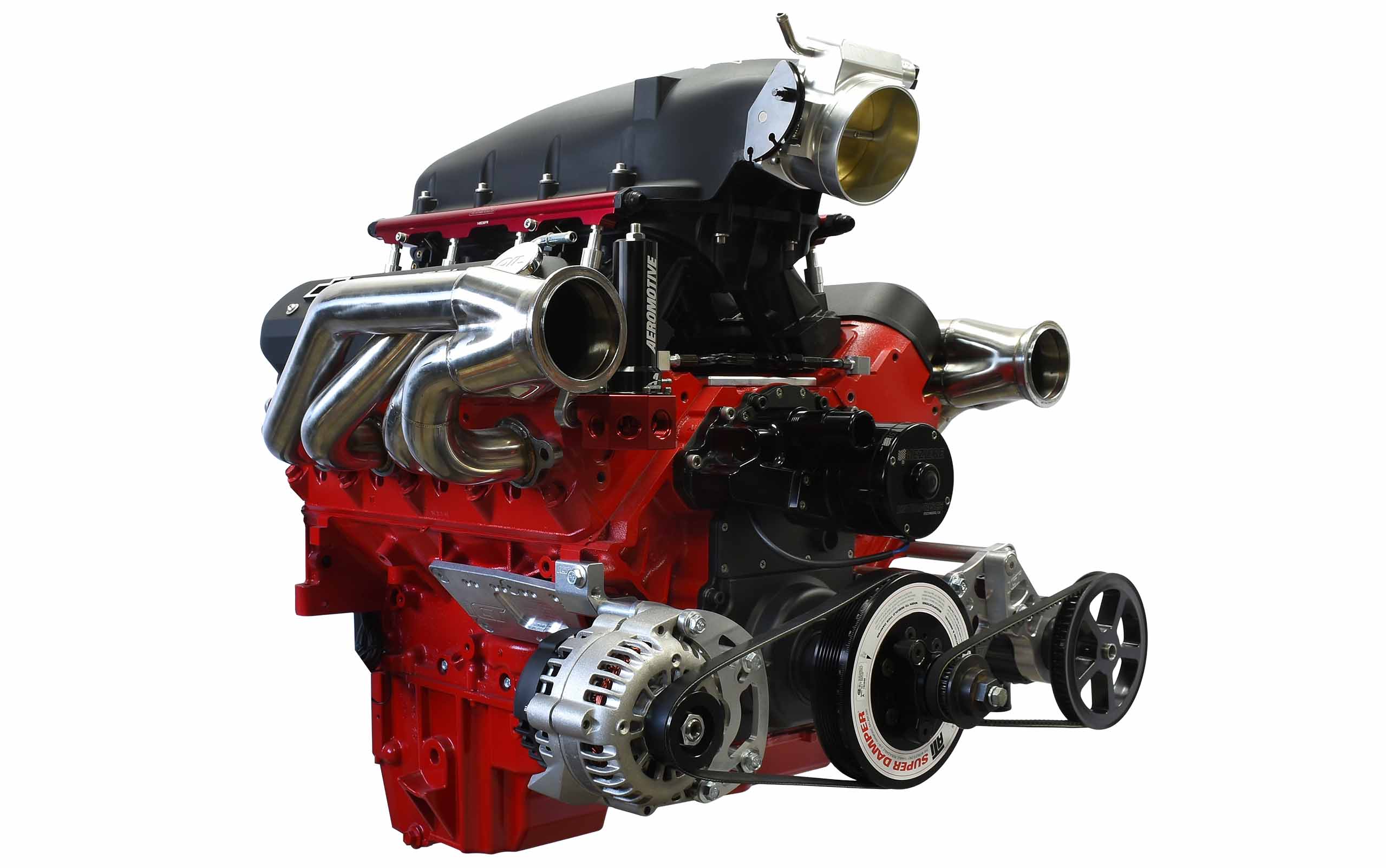

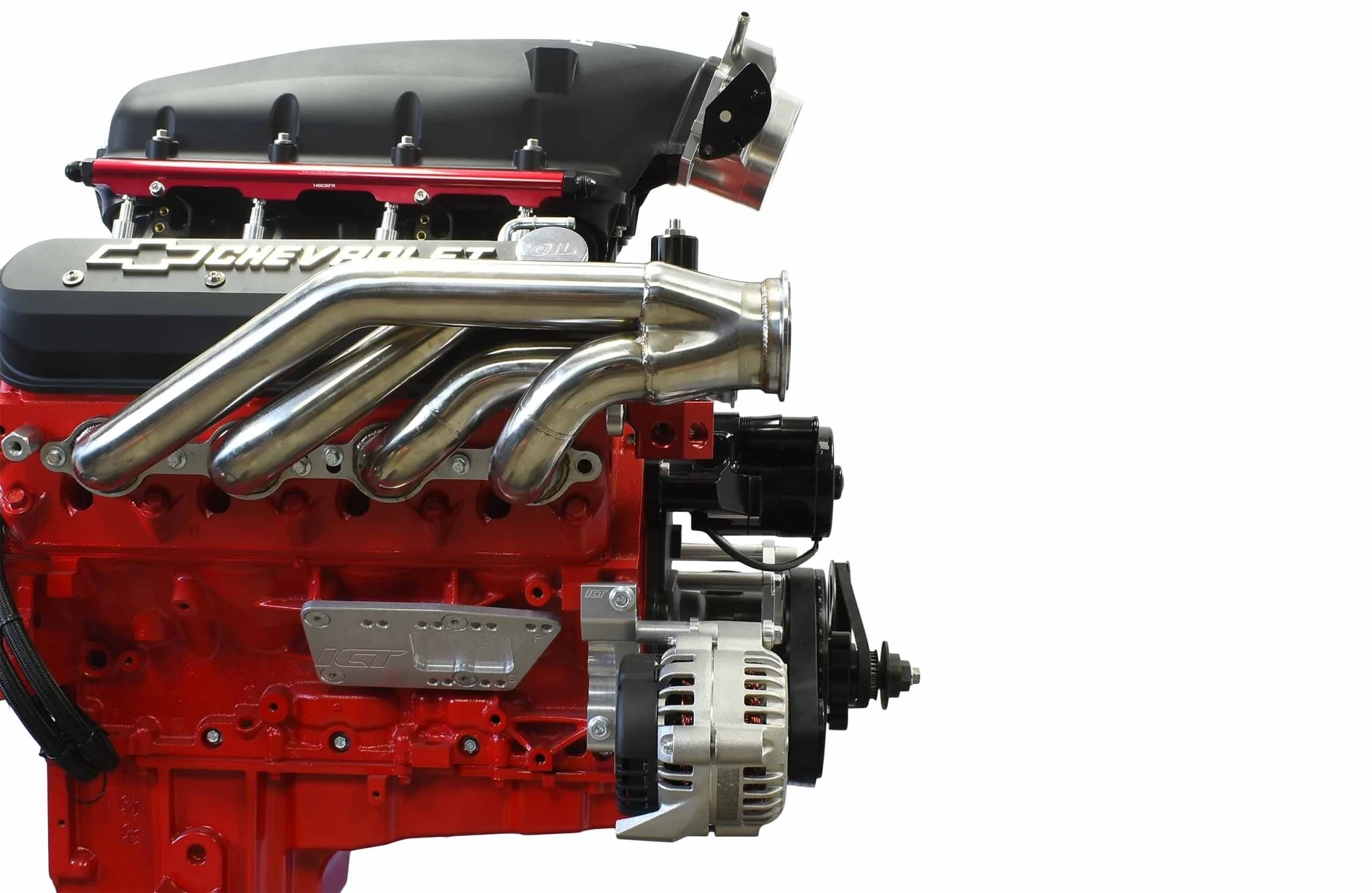

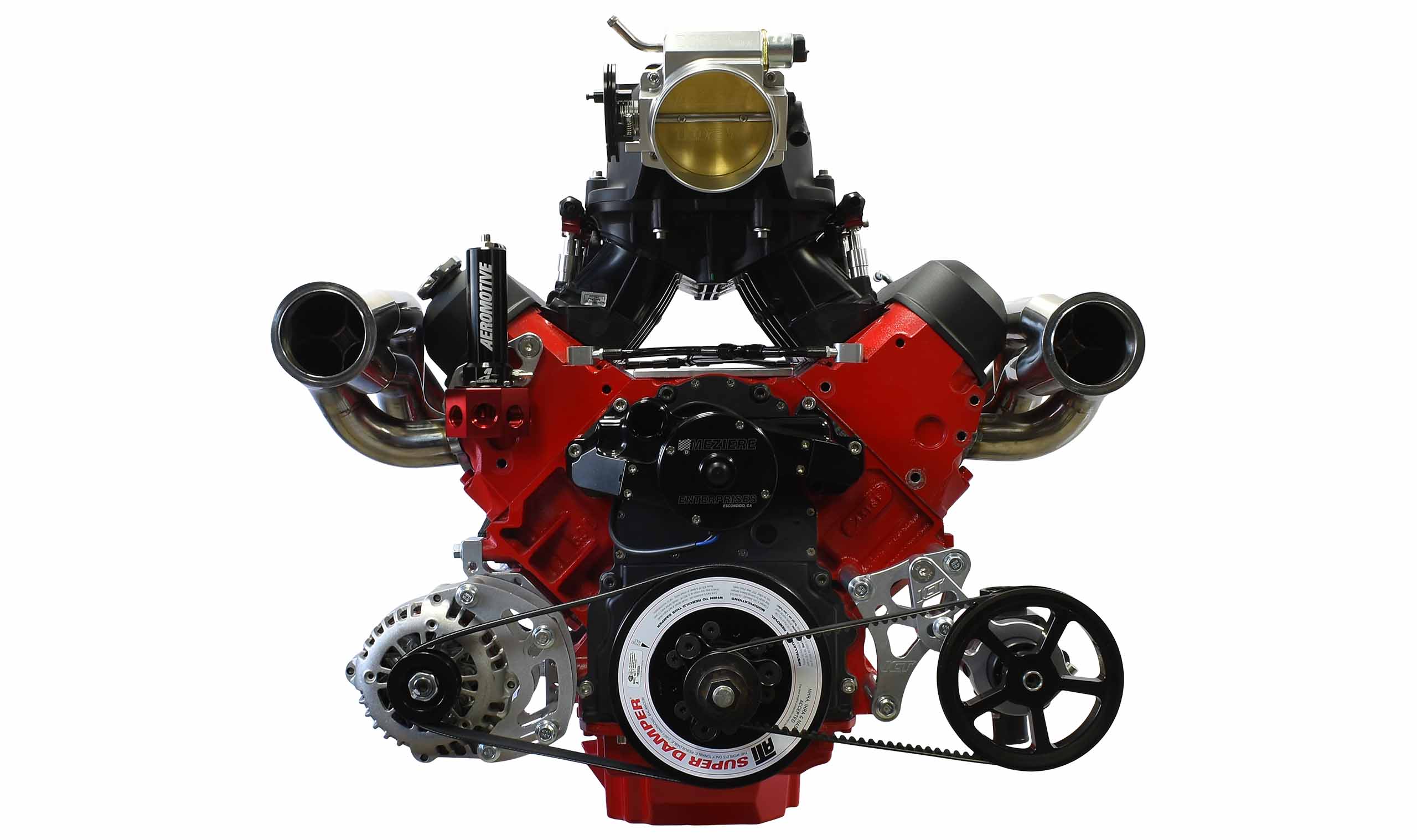

LS Low Mount Alternator Bracket (Electric or Remote Water Pump or Motor Plate) - for LS Truck Crank Pulley Spacing

Compatible with: LS Truck/SUV Crank Spacing LS Series Engines

Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only

• Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
• Compatible with: LS Truck/SUV (or 2010-15 Camaro) crank pulley (ICT# BAL300)
• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

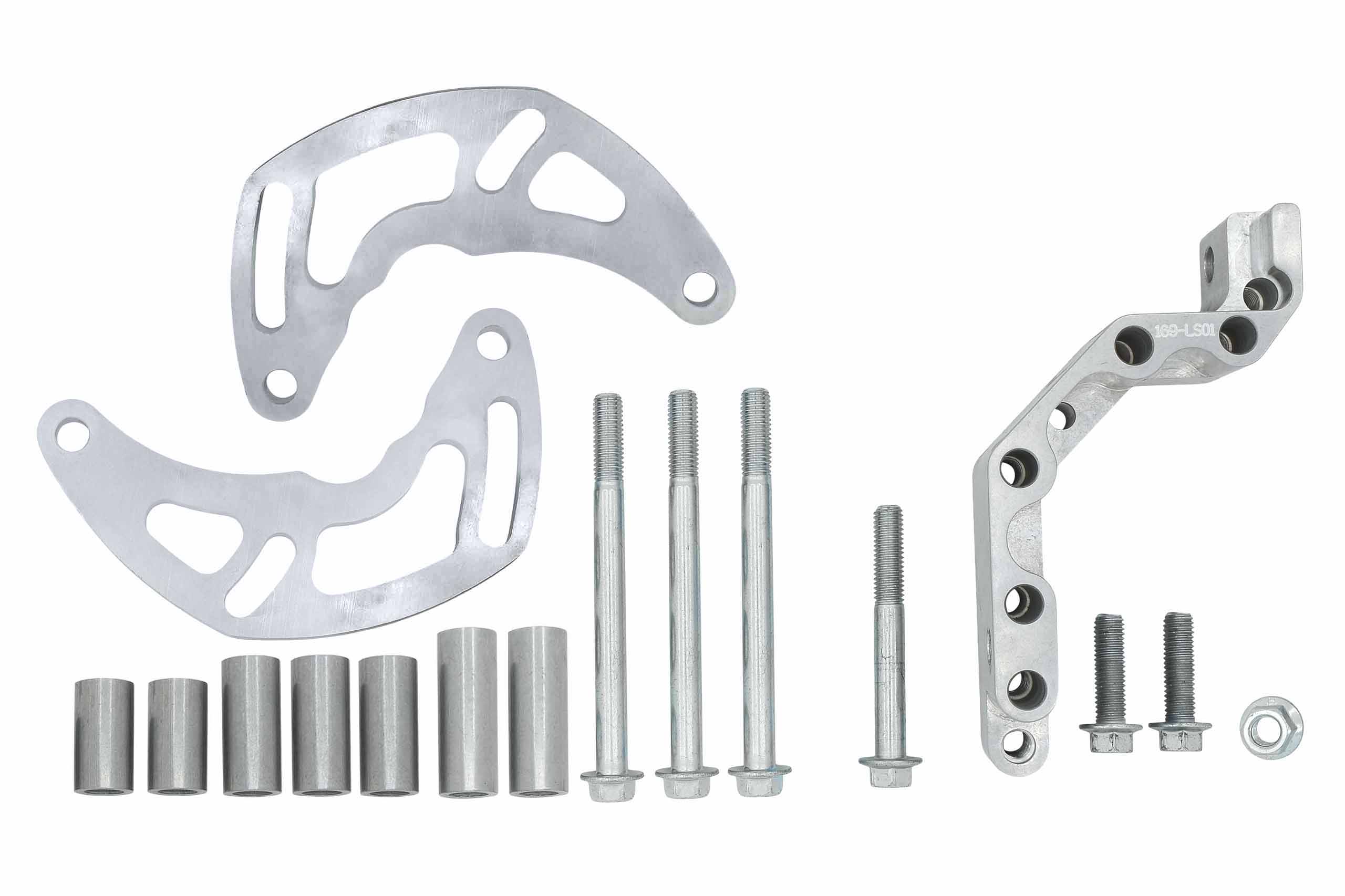

• Includes: alternator bracket and mounting hardware
• Made from aerospace-grade billet aluminum
• Made in the USA
• NOT COMPATIBLE WITH ICT BILLET TURBO OIL DRAIN TIMING COVER

Belt Lengths:

(105 Amp-130 Amp Alternator) 35.0” PN 350K6
